This product boasts a diverse range of applications, meeting the needs of most customers while ensuring exceptional safety and reliability.
Performance Characteristics:

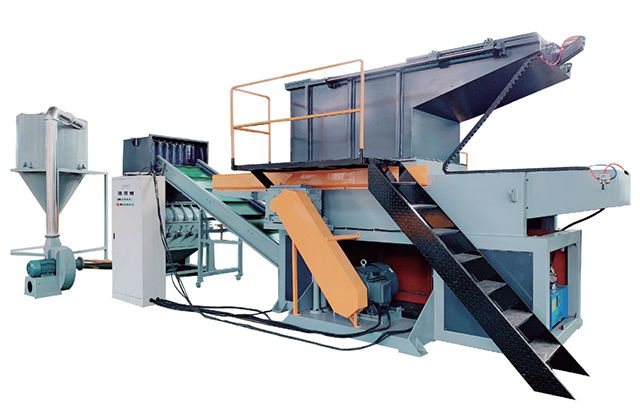

The single shaft shredder unit is used to process the recycling of large pieces of head material, plastic pipes and various plastic products. First, the materials are torn apart by the shredder to reduce the firmness of the materials, and then conveyed to the shredder by the conveyor belt. Fine powder is carried out, and the sieved crushed material is collected in a centralized manner.
The whole set of equipment is controlled in a control box, equipped with a PLC automatic control system, which can be manually reversed, manually forwarded, one - key start is convenient and fast, and has overload protection function.
Parameters:
| Name/Model | SPDG-2340Z | SPDG-2360Z | SPDG-2363Z | SPDG-3280Z | SPDG-32100Z | SPDG-38120Z | SPDG-45150Z |
|
| Shredding Power (kw) | 18.5 | 22 | 22 | 37 | 45 | 55 | 90 |
|
| Crushing Power (kw) | 15 | 22 | 22 | 37 | 55 | 75 | 90 |
|
| Conveying Power (kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
|
| Screen Aperture (mm) | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 |
|
| Fan Power (kw) | 2.2 | 2.2 | 2.2 | 3 | 4 | 5.5 | 7.5 |
|
Product quality advantages:
 |
1 Rotating Blade Shaft
The blade material is DC53, and the four corners can be replaced
|
 | 2 Electric Box
Sie mens programming control system is adopted to realize automatic control, with start, stop, reverse and overload automatic reverse control functions |
 | 3 Push box
Through hydraulic control, the push box repeatedly pushes the material to the knife roll, significantly improving the output and even granulation of the product |
 | 4 Screen
The size of the screen aperture determines the particle size of the product. Customers can choose the appropriate screen size and shape according to their needs |

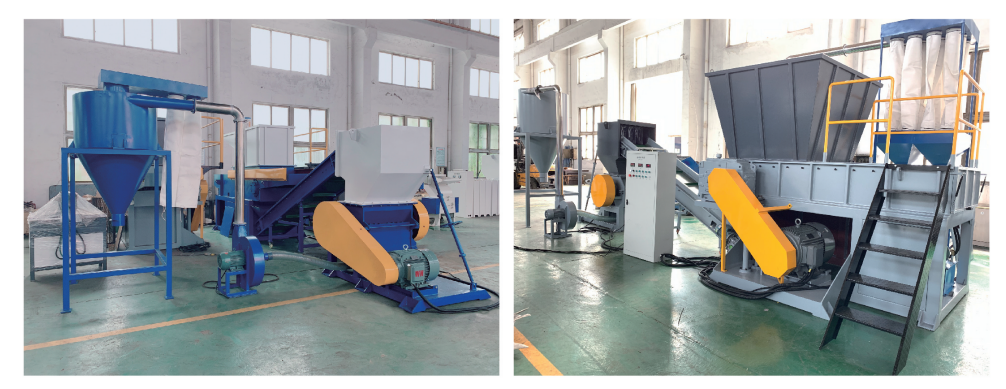

Effect display:
※We reserve the right to change specifications without prior notice.
