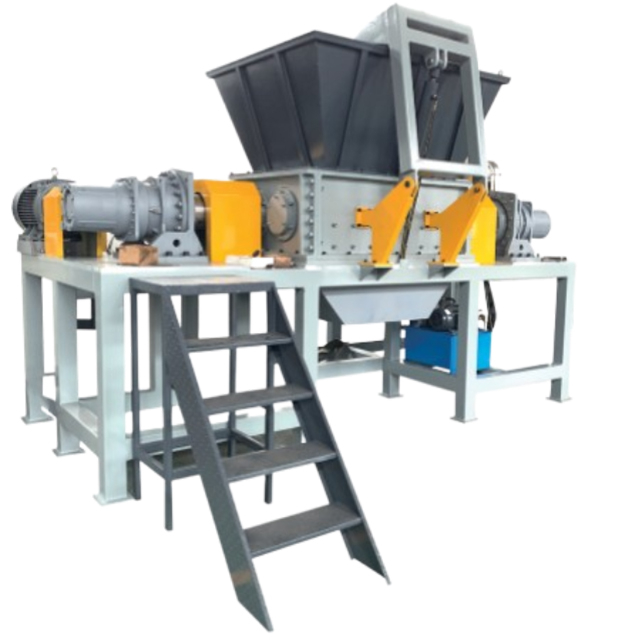

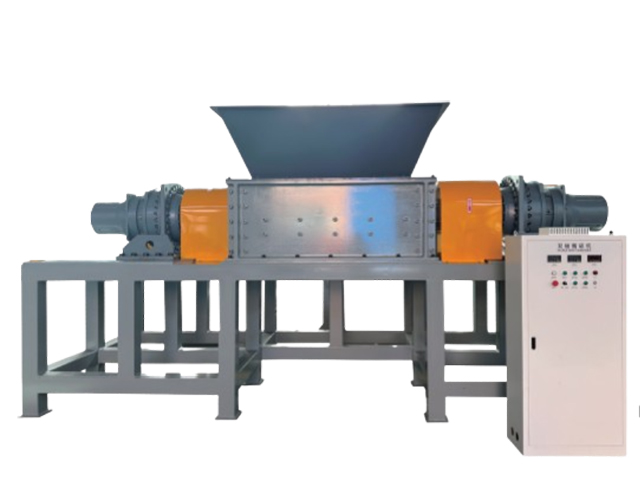

Multifunctional shredder is also called double-shaft shredder,which specializes in handling waste cars,waste tires,electronic waste,wooden pallet,waste household appliances and furniture,etc.
The geometry of the blade can be customized according to the specific materials to be processed.
Two reverse rotating shafts with specially designed blades and a spacer comb placed between the blades and connected to the wall of the shredded chamber vigorously cut the material into pieces.
Product introduction
This series of double shaft shredders can meet the waste recycling requirements of various industries, and is suitable for shredding thick and hard to break materials such as electronic waste, plastic, metal, wood, waste rubber, packaging barrels, pallets, etc.
There are many kinds of recyclable materials, and the shredded materials can be recycled directly or further refined according to demand.
It is applicable to industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper making and other industries.
Scope of application
Detailed description
Reinforced case, smooth and flat inner cavity, tenon structure, easy to disassemble
The intelligent control system monitors the whole operation process of the equipment in real time to ensure the safety of the tool
The gearbox of the shredder adopts a hard gear reducer with high precision and long service life
The shredder blade is made of alloy steel after forging, fine grinding, annealing, heat treatment and tempering
Combined Type
Solid Blades
It is suitable for tearing up various common materials, such as electronic waste, hard plastic, rubber, various material packaging barrels, etc
Assembly Blades
Suitable for tearing heavy metals or thick plastics, such as refrigerators, metal buckets and materials with a thickness of more than 10mm
SW Blades
Suitable for tearing fragile or brittle materials, such as wood, aluminum engine shell, etc
VZBlades
Suitable for tearing SB materials, such as packaging aluminum, car shell, etc
Special Blades
It is suitable for tearing hard materials such as circuit boards, and can directly tear materials to a size of less than 10mm without screen
SPR Blades
It is suitable for the treatment of RDF (waste derivative natural material), MSW (solid waste) and other domestic waste for pre-crushing and unpacking, and thematerial discharge is less than 300mm
Blades with different hooks
Single-hook blad
Two-hook blade
Four-hook blade
Six-hook blade
Hooks type
Application characteristics
Single-hook blade
Single hook blade configuration is the most universal blade choice.It has a powerful structure and can be used in a wide range of applications.
Two-hook or Multi-hook blade
Multi hook blade configuration is used primarily for shredding easy to shred products.It is more efficient when doing light shredding applications.
Blades with different thickness
·10mm-20mm blade is suitable for thin and fragile products, such as medical supplies and circuit boards
·40mm-50mm thick knife is used for general products, such as plastic products, films, plastic buckets, tires, wood boards, etc
·The blade with a thickness of more than 75mm is suitable for thicker plastic or plastic and metal composite products, such as refrigerators, metal cans, and other products with a metal thickness of less than 100MM
Technical parameter
Model
SP-400
SP-600
SP-800
SP-1000
SP-1200
SP-1400
SP-1600
Chamber Calibre(mm)
400x370
600x390
805x570
1000x630
1200x760
1400x760
1600x820
Motor power(kw)
7.5
18.5
30
37
55
75
90
Rotary cutter shaft diameter(mm)
190
230
320
350
420
420
500
Size of rotating blade(mm)
190x20
.230x50
320x50
350x50
420x50
420x50
500x50
Rotating blade(Pcs)
20
12
16
20
24
28
32
Fixed blade(Pcs)
20
12
16
20
24
28
32
Weight（kg）
1800
3100
4000
5200
6800
7500
9000
※We reserve the right to change specifications without prior notice.
