This product boasts a diverse range of applications, meeting the needs of most customers while ensuring exceptional safety and reliability.
Performance characteristics:

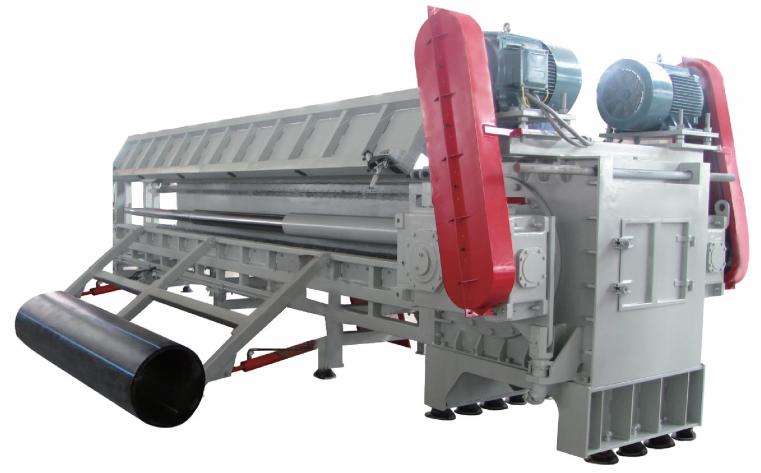

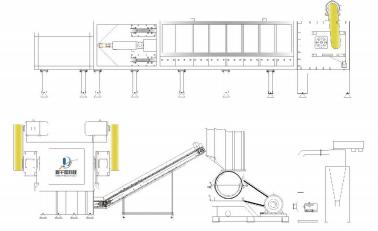

The horizontal shredder is used to process plastic pipes with a length of up to 6 meters and a diameter of 630 - 1200mm. The number of shredder spindles is set according to the diameter of the pipes of different sizes to form the best cutting angle. The motor is designed separately, and the main shaft of the shredder can be controlled separately, which reduces the working resistance and reduces the operating cost. Each shredder shaft has its own position for optimal use. The feeding system adopts hydraulic cylinder type, which can adjust the feeding speed and control efficiently and stably.
The machine is equipped with PLC automatic control system, one - button start, convenient and quick. The system has overload protection, automatic forward rotation, automatic reverse rotation and other functions. The conveyor belt will also control its operation program according to the overload degree of the machine, so as to ensure that the machine does not get stuck due to material accumulation during the working process.
Suitable for large diameter pipes, large size PP, PC sheets.
