Product Description

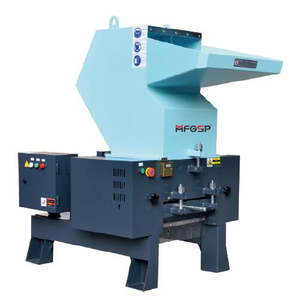

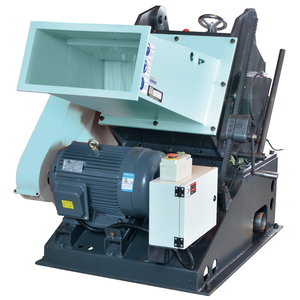

SG-H series is applicable to crushing the hollow container similar like bottle and barrel,adopted the most advanced double V shape shearing technique.The special designed feed inlet can equip with automatic feeding.With feature of saving energy,uniform granule,compact structure,easy operation and easy to clean.
Specifications:
Model | Chamber Calibre (mm) | Crush Capacity (kg/H) | Rotating Blade (Pcs) | Fixed Blade (Pcs) | Motor (Kw) | External Dimension LxWxH (mm) | Weight (kg) |
SG-600H | 500x600 | 500-700 | 3x2 | 2x2 | 15 | 1710x1450x2100 | 1600 |
SG-700H | 500x700 | 600-800 | 3x2 | 2x2 | 18.5 | 1710x1550x2100 | 2300 |
SG-800H | 500x800 | 800-1000 | 3x2 | 2x2 | 22 | 1810x1650x2100 | 3000 |
Note:The crushing capacity depends on the diameter of screen mesh. |
※We reserve the right to change specifications without prior notice.
