    Low Speed Crusher

    • SG Series

    • MFGSP

    • 8479820090

    • CHINA

    • Brand new with guarantee

    • Immediate

    • Depending on specification

    Size:
    SG-2425- 2B/2C
    SG-2838- 2B/2C
    SG-3242- 2B/2C
    SG-3844- 2B/2C
    Availability:
    Inquire Add to Basket

    Product Description

    The device is applicable to crushing hard and thick materials and a small quantity of waste.Principle design of teeth cutters and staggered blades makes least dusts produced in the grinding process.The multiple security protection devices ensure high safety grade.


    Specifications:

    Model SG-2425-2B/2C SG-2838-2B/2C SG-3242-2B/2C SG-3844-2B/2C
    Chamber Calibre (mm) 250x240 305x315 410x315 440x380
    Crush Capacity (Kg/H) 15-20 20-25 25-30 35-40
    Rotating/FixedBlade (Pcs) / / / /
    Rotationalspeed (rpm) 24
    Motor(Kw) 1.5 2.2 2.2 3
    Blower 0.55
    /
    Diameter of crushing rotation / / / /
    Diameter of aperture
    		/ / /
    L(mm) 450 500 500 560
    W(mm) 900 1100 1200 1300
    H(mm) 1130 1200 1230 1380
    Φ(D) Φ38
    Weight (kg) 230 300 320 490

    ※We reserve the right to change specifications without prior notice.

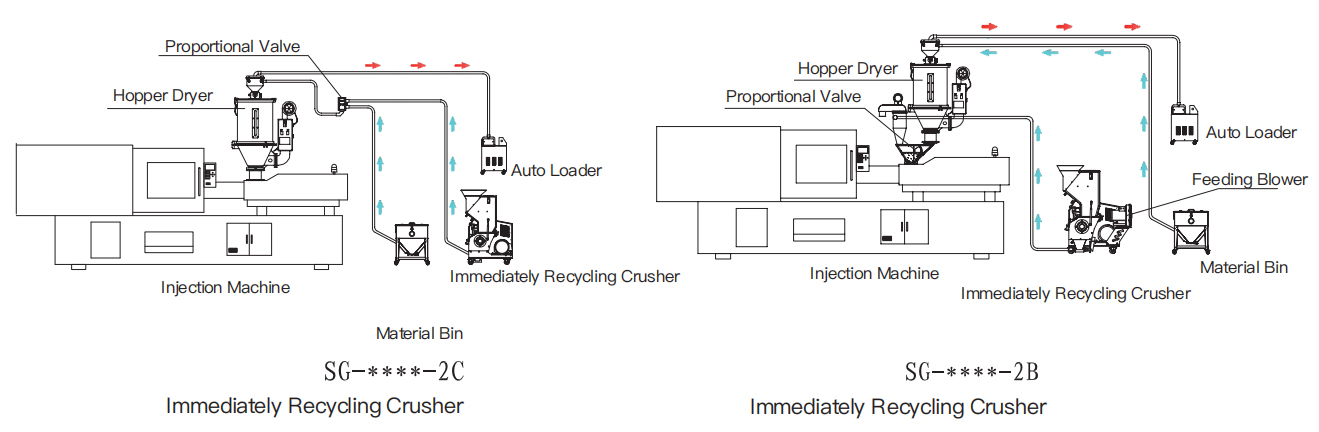

    Diagram of installation:

    Recycling crusher di

    Structure:

    慢速2慢速1


    1

    Main frame

    6

    Feeding point

    2

    Mobile hopper

    7

    Safety cover

    3

    Serrated knife

    8

    Motor

    4

    Claw knife

    9

    Switch box

    5

    Feeding hooper

    10

    Electrical box
