The device is applicable to centralized pulverizing of all kinds of plastics,including the waste of injection moulding,blow molding and extrusion forming.The structure of Crusher is compact for convenient operation,easy cleaning and maintenance which enhances the working efficiency.
1. The machine is made of steel plate by welding, which is solid and durable.
2. The blade has claw type and blade type design, with strong shearing force, and is suitable for crushing materials of different thicknesses.
3. The crushing chamber is specially designed, with no material jumping, large feeding diameter, easy feeding, double-layer sound insulation and low noise.
4. It is mainly used for the crushing of polybasic ethylene, modified polybasic ethylene (ABS), polypropylene (PP), modified polystyrene (EVA), polycarbonate (bulletproof adhesive),Polyvinylamine (PVC), polyurethane (PU), nylon (NYLON), rubber and various waste plastic products. It is also widely used in daily necessities, toys, electrical parts, building materials and other industries.
Specifications:

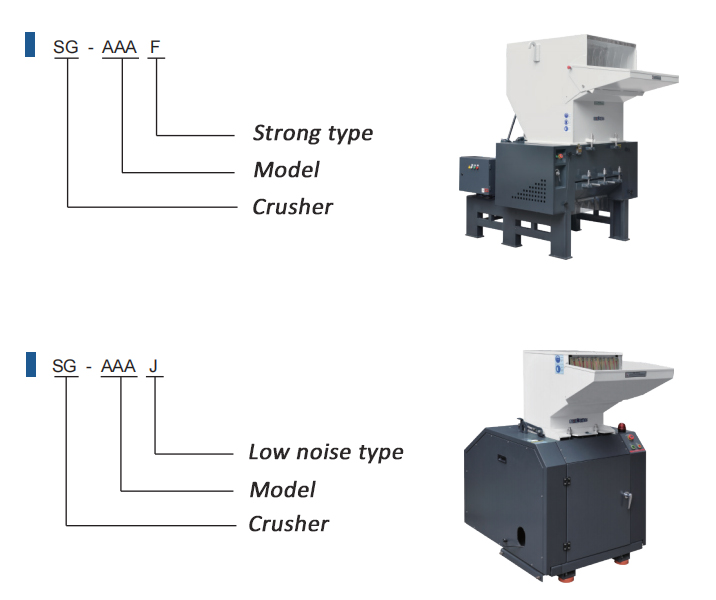

Model
SG-230F
SG-300F
SG-400F
SG-500F
SG-600F
SG-800F
SG-1000F
SG-1200F
SG-400JF
SG-500JF
SG-600JF
SG-800JF
Chamber Calibre (mm)
230×250
310×260
402×300
510×375
600×402
810×540
1010×660
1210×820
402×300
510×375
600×402
810×540
Crush Capacity (Kg/H)
100-200
200-300
350-400
3
50-500
450-600
600-800
700-1000
800-1200
350-400
350-500
450-600
600-800
Rotating Blade (Pcs)
3×2
3×3
3×4
3×5
3×6
3×4
3×5
3×6
3×4
3×5
3×6
3×4
Fixed Blade (Pcs)
2×1
2×1
2×1
2×2
2×2
2×2
2×3
2×3
2×1
2×2
2×2
2×2
Motor (Kw)
4
5.5
7.5
11
15
22
30
45
7.5
11
15
22
Diameter of crushing rotation (mm)
Φ185
Φ185
Φ220
Φ290
Φ320
Φ425
Φ520
Φ645
Φ220
Φ290
Φ320
Φ425
diameter of aperture (mm)
Φ8
Φ8
Φ10
Φ10
Φ10
Φ10
Φ12
Φ12
Φ10
10
Φ10
Φ10

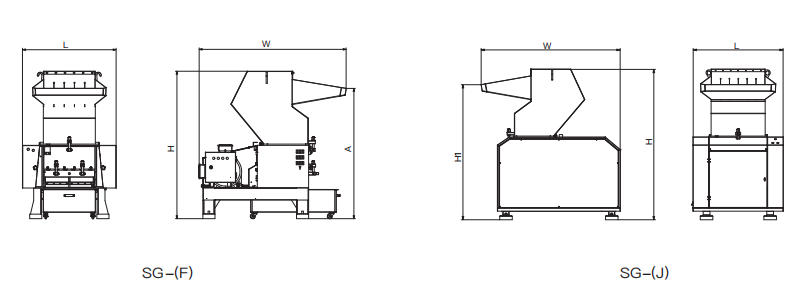

L (mm)
650
736
831
930
1080
1390
1652
2070
820
930
1080
1460
W (mm)
975
1097
1242
1426
1595
2200
2472
2915
1380
1560
1670
2300
H (mm)
1000
1135
1290
1465
1662
2172
2540
3340
1420
1600
1800
2230
Feed inlet height (A) (mm)
900
1020
1150
1300
1480
1838
2120
2560
1270
1430
1620
1890
Weight (kg)
245.5
323.5
436
692
873
2192
2928
5760
540
810
1020
2460
※We reserve the right to change specifications without prior notice.
