•Stable and smooth action,wear resistant and durable.
•The vertical axis adopted servo moter with accuracy to 0.1mm,high speed,heavyload,to increase production efficiency.Handheld control system adopts conversational operation which can be selected multiple languages view powerful function,and supports many groups of extension input/output to improve the automatic manufacture.
•Self-diagnostic system continually monitors input/output status and stores recent error message records.
•It can inspect the air presure automatically,it will alarm when its not safe.
•The robot has the CE standard complying with EUROMAP or SPI rules and the standard interface forming by the connection between EUROMAP12 or EUROPAP67 and molding machine.
Application:

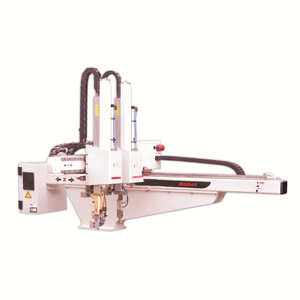

The Three Servo Robot series robot is designed for rapid and precise removal of products from injection molding machine,and place them at desired locations.Apply to 2-plate mold or hot runner system.Capable of arranging,stacking,quality checking and in mold placement.Suitable for injection molding machine with clamping force under 3600tons.
Specification:
Model
Robot Type
L.M.M. Rgnge (ton)
Vertical Stroke(mm)
Crosswise Stroke(mm)
Traverse Stroke(mm)
Gripper Angle
Max Load (includes gripper) (kg)
Minimum take out time (sec)
Cycle time (sec)
Drive System
Working Air Pressure (kgf/cm2)
Air Consumption(NL)
Power Consumption (KVA)
Power Supply
Weight (kg)
SVC-700(D)
Single-stage
90-160
700 D:700
500 D:350
1300
90
5
1.5
3.5
Servo Motor
5-7
2.9
3.4
AC220V± 10%(50/60HZ)
260
SVC-800(D)
160-280
800 D:800
500 D:350
1540
5
1.5
3.5
2.9
3.4
300
SVC-900W
250-320
W:900
W:300
1460
5
2.5
8
Three axis servo
12
1.5
400
SVC-1000W
320-380
W:1000
W:350
1950
10
3.5
10
12
1.5
430
SVC-1100W
380-470
W:1100
W:350
1950
10
3.5
10
12
1.5
440
SVC-1200W
470-530
W:1200
W:400
2190
10
4.0
12
13
1.5
500
SVC-1300W
530-600
W:1300
W:400
2190
10
4.0
12
13
1.5
520
SVC-1500W
600-800
W:1500
W:500
2350
15
7.0
20
15
2.4
700
SVC-1500WN
Telescppic type
800-900
W:1150
W:1150
2300
25
8.0
15
25
3
800
SVC-1700WN
900-1000
W:1700
Air Consumption for adsorption system 60NL/min
Model
Dimensions(mm)
A
B
C
D
E
F
G
H
I
J
K
L
M
N
SVC-700
1450
300
1880
100
700
150
1300
870
480
/
645
/
250
125
SVC-700D
50
215
265
SVC-800
1500
800
/
/
125
SVC-800D
50
215
265
SVC-900W
1470
322
1900
150
900
/
1460
1140
472
/
820
/
300
220
SVC-1000W
1530
422
2500
1000
1950
1280
960
325
SVC-1100W
1600
1100
350
SVC-1200W
1660
2740
200
1200
2190
1500
1180
300
SVC-1300W
1730
1300
SVC-1500W
1850
522
2990
1500
2350
1810
1350
425
SVC-1500WN
2000
350
3050
200
1500
/
2000
550
1150
300
300
SVC-1700WN
2100
1700
※We reserve the right to change specifications without prior notice.
