●The device can cool the water temperature ranging from 7 to 35℃.
●The low cooling temperature can be customized as per customer's needs.
●The micro computer controls the system running and the temperature can be precise to ±1℃.
●The overload protection device is used for compressor and pump to prolong the service life.
●The multi protection device(antifreezing protection,high and low pressure protection and flow protection)ensures the system safety.
●The water tank is made from the stainless steel and has a heat insulation layer. Freezing pipelines have the insulation layer to improve refrigerating efficiency.
Specifications:
Model
Refrigeration capacity
Compressor
Refrigerant
Water tank capacity (L)
Evaporator Type
Freeze water Pipe (Inch)
Freeze water flow rate
Condenser Type
Cooling water Pipe (Inch)
Cooling water flow rate
Safeguard
Power

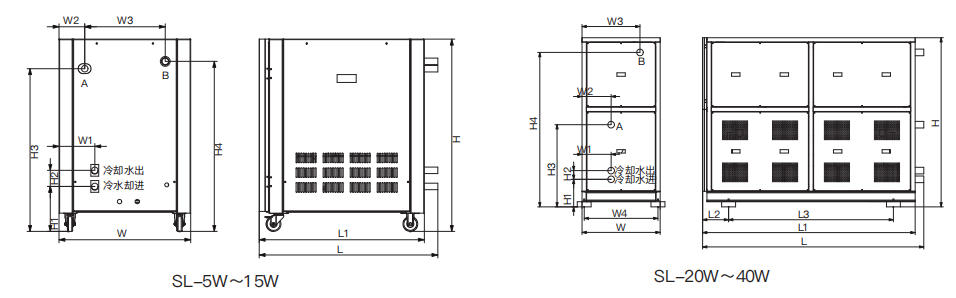

Dimensions LxWxH(mm)
Weight (Kg)
KW
Kcal/h
Input power HP
Type
Filling quantity(Kg)
L/min
M3/h
L/min
M3/h
SL-5W
15
12900
5
R22
2.5
90
Serpentine pipe type
1"
90
5.4
Shell type
1"
110
7
Protection of high & low pressure/ Compressor overload /Pump overload
AC3+N+PE 50/60Hz
840x670x980
160
SL-10W
30
25800
10
5
180
1.5"
210
11
1.5"
210
13
1550x710x1150
300
SL-15W
45
38700
15
7.5
270
2"
270
16
2"
350
21
1660x820x1400
460
SL-20W
60
51600
20
10
350
2"
315
16
2"
350
21
1800x950x1700
600
SL-30W
90
77400
30
15
-
Shell type
3"
16
3"
350
21
Protection of high & low pressure/ Compressor overload/Pump overload/ Antifreezing/Flow rate
1950x1000x1330
900
SL-40W
120
103200
40
20
-
3"
23
3"
480
29
2180x1200x1420
1120
SL-50W
150
129000
50
25
-
3"
28
3"
610
37
2190x1200x1450
1190
SL-60WL
180
154800
60
30
-
4"
33
4"
710
43
2260x1200x1590
1430
SL-70WL
210
180600
70
35
-
4"
38
4"
830
50
2870x1200x1660
1560
SL-80WL
240
206400
80
40
-
4"
44
4"
950
57
2870x1300x1660
1590
SL-90WL
270
232200
90
45
-
4"
55
4"
1160
70
3000x1300x1890
2110
SL-100WL
300
258000
100
50
-
4"
62
4"
1330
80
3020x1300x1910
2230
SL-120WL
360
309600
120
60
-
4"
72
4"
1500
90
3020x1300x1910
2350
Note:The working conditions for refrigeration:
Freezing water inlet temperature is 12℃,and the outlet temperature is 7℃
Air side inlet (environmental temperature) is 35℃
※We reserve the right to change specifications without prior notice.
