    Mold Dehumidifier Dryer

    Sales Models: Wholesale, MOQ: One set

    • SMD Series

    • MFGSP

    • 8419399090

    • CHINA

    • Brand new with guarantee

    • Immediate

    • Depending on specification

    Size:
    SMD-500
    SMD-1000
    SMD-1500
    SMD-2000
    Availability:
    Inquire Add to Basket

    Product Description

    ●The device operational principle:the air passes rotating honeycomb then blows off the dew on the mold to keep the mold clean.

    ●Our Mold Dehumidifying Dryer adopts imported rotating honeycomb,can provide the steady dew piont around -10℃,make the injection mold far away from condensation of moisture,improve the products' quality effectively.




    1

    Honeycomb

    6

    Condenser

    2

    Regeneration blower

    7

    Heater

    3

    Drying blower

    8

    Humidity outlet

    4

    Control panel

    9

    To hopper

    5

    Filter

    10

    From hopper

    Specifications:

    Model SMD-500 SMD-1000 SMD-1500 SMD-2000
    Dry blower (m³/hr) 500 1000 1500 2000
    Power of dry blower (kW) 0.9 1.5 2.2 3
    Power of regenerating blower (kW) 0.18 0.18 0.34 0.34
    Power of regenerating heater (kW) 7 7 9 9
    Pipe diameter (mm) 102 127 152 152
    L (mm) 1050 1050 1170 1170
    W (mm) 1000 1000 1330 1330
    W1 (mm) 830 830 1030 1030
    H (mm) 1660 1660 1865 1865
    Weight (kg) 250 370 420 550
    ※ We reserve the right to change specifications without prior notice.

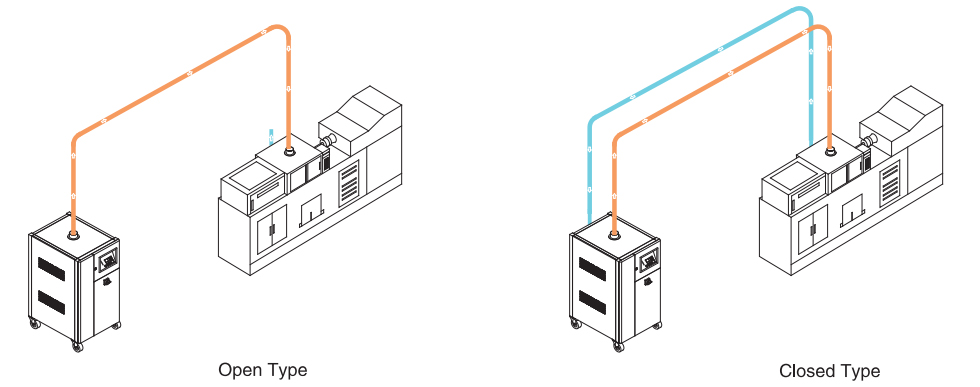

    Diagram of Installation

    mold dehumidifying dryer di

    mold dehumidifying dryer

    Previous:
    Next:

    Related Products

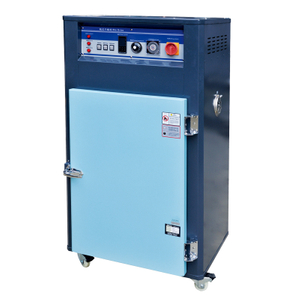

    Cabinet Dryer
