Performance characteristic:
●The hopper is made from high quality of stainless steel to ensure that the materials won't be polluted.
●The out layer is made of special material which is fashionable and attractive.
●The high-efficiency insulation material between internal layer and out layer to reduce the heat loss.
●Hot air down-blowing design ensures the even temperature in the hopper.
●The temperature is controlled by the import PID temp.controller to ensure the precision temperature.
●The 24H timer can achieve device startup in advance to improve work efficiency.
●Equipping with the cleaning door,which is convenient for cleaning the hopper.
Specifications:
| Model | Capacity
(kg) | Heater
Power (kw) | Blower
Power (w) | External
Dimensions
LxWxH(mm) | Weight
(kg) |
| SHD-3L | 2 | 1 | 30 | 285x340x970 | 15 |
| SHD-5L | 3 | 1 | 30 | 395x390x610 | 30 |
| SHD-40L | 25 | 3.2 | 80 | 620x680x1085 | 50 |
| SHD-80L | 50 | 4.2 | 120 | 650x780x1310 | 60 |
| SHD-120L | 75 | 5 | 120 | 680x790x1430 | 65 |
| SHD-160L | 100 | 7 | 150 | 740x970x1560 | 70 |
| SHD-230L | 150 | 7 | 155 | 770x1020x1730 | 80 |
| SHD-300L | 200 | 12 | 380 | 920x1120x1980 | 100 |
| SHD-380L | 250 | 14.5 | 380 | 950x1170x2080 | 130 |
| SHD-460L | 300 | 14.5 | 400 | 1120x1010x2120 | 160 |
| SHD-600L | 400 | 18 | 550 | 850x1400x2300 | 200 |
| SHD-700L | 500 | 18 | 550 | 990x950x2100 | 230 |
| SHD-800L | 600 | 24 | 750 | 990x950x2290 | 250 |
| SHD-1000L | 700 | 24 | 750 | 1100x1050x2300 | 320 |
| SHD-1100L | 800 | 24 | 1100 | 1100x1050x2500 | 370 |
| SHD-1500L | 1000 | 28 | 1100 | 1145x1100x2700 | 490 |
| SHD-1700L | 1200 | 30 | 1500 | 1200x1250x3100 | 550 |
| SHD-2000L | 1500 | 35 | 2200 | 1200x1360x3330 | 600 |
| SHD-2800L | 2000 | 40 | 2200 | 1385x1360x3330 | 700 |
| SHD-3500L | 2500 | 45 | 3000 | 1400x1360x4170 | 800 |
| SHD-4000L | 3000 | 45 | 3000 | 1500x1460x4170 | 880 |

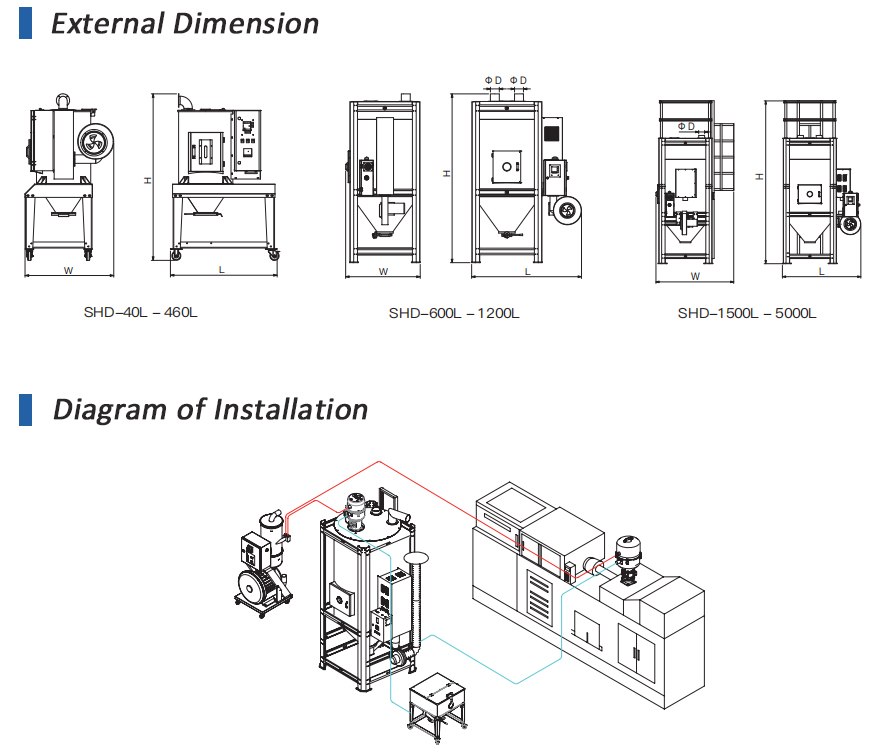

Diagram of Installation
※We reserve the right to change specifications without prior notice.
