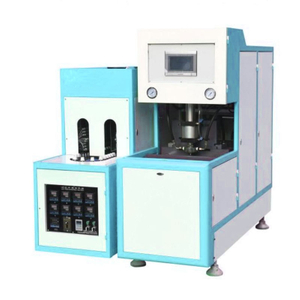

The company adopts Germany advanced technology to develop SP-B series PET energy-saving automatic advantages of accurate positioning,low noise,low power consumption and fast speed. It's suitable for producing PET plastic containers and bottles in all shapes below 20 Litre,like carbonated bottle, mineral water, pesticide bottle ,oil bottle,beverage bottle,medicine bottle etc.
Specification:
TYPE
ITEM
UNIT
SP-AB2000-2-115-79-Z
SP-AB2000-2-130-73-Z
SP-B5000
SP-AB5000-2-56-190-Z
SP-B12L
SP-B20L
Clamping
Clamping force
kn
200
200
500
500
500
700
Clamping stroke
mm
140
140
210
210
300
330
Stretching stroke
mm
450
450
450
450
450
450
Bottom stroke
mm
30
30
50
50
50
50
Cavity pitch
mm
115
130
220
190
270
330
Number of cavity
cavities
2
2
1
2
1
1
Container
Theoretical output
bph
1300-2400
1300-2400
700-950
1200-1600
500-600
350-500
Max.container volume
l
2.0
2.0
5
5
12.5
22
Max.neck outer diameter
mm
26-90
28-100
30-50
30-70
30-50
40-82
Max.container diameter
mm
105
120
180
175
270
300
Max.container height
mm
320
320
330
330
440
500
Electrical system
Number of lamp
pcs
32
32
24
48
36
42
Max. heating power
kw
30
30
44
48
68
80
Installed power
kw
32
32
48
49
72
85
Actual electricity consuming
kw
8
8
16
16
20
24
Air system
Operating pressure
kg/cm²
7
7
7
7
7
7
Low pressure air consumption
Ltr/min
1200
1200
1200
1500
1500
1500
Blowing pressure
kg/cm²
≤30
≤30
≤35
≤35
≤35
≤35
High pressure air consumption
Ltr/min
2000-2500
2000-2500
3000-4500
6000-8000
6000-7200
6000-10000
Machine
Machine size
m
3.3x1.7x2.0
3.4x1.8x2.0
2.4x1.9x2.0
4.0x1.9x2.0
5.4x1.9x2.0
5.4x1.9x2.0
Machine weight
t
2.8
3.2
3.0
4.2
4
6
※We reserve the right to change specifications without prior notice.
