Performance characteristic:
●The machine can provide the dry wind with the low dew point of -50℃ and satisfy many requests of plastic production.
●The machine is controlled by PID micro computer to make the accurate temperature.
●The machine is equipped with the converse alarm function.
●The machine is equipped with the alarm function for abnormal wheel turning.
●The filter device is installed on regeneration and dry pipelines to ensure the service life of honeycomb and the clean of the dry wind.
●The machine is equipped with highly efficient condenser to ensure the lower temperature of the return air.
Specifications:
| Model | Dry Blower
(m³/hr) | Power of
Dry Blower
(kw) | Power of
Regenerating
Blower (kw) | Power of
Regenerating
Heater (kw) | Pipe
Diameter
(inch) | External
Dimensions
LxWxH(mm) | Weight
(kg) |
| SLD-80 | 80 | 0.55 | 0.18 | 1.5 | 2" | 750x600x1230 | 155 |
| SLD-100 | 100 | 0.75 | 0.25 | 2 | 2" | 750x600x1230 | 165 |
| SLD-120 | 120 | 1.5 | 0.25 | 2 | 2" | 900x650x1330 | 202 |
| SLD-150 | 150 | 1.5 | 0.55 | 3 | 2.5" | 900x650x1330 | 208 |
| SLD-200 | 200 | 2.2 | 0.55 | 3 | 2.5" | 900x650x1330 | 220 |
| SLD-300 | 300 | 2.2 | 0.55 | 3 | 3.5" | 1050x800x1550 | 278 |
| SLD-400 | 400 | 4 | 0.55 | 4 | 3.5" | 1050x800x1550 | 300 |
| SLD-500 | 500 | 5.5 | 0.75 | 4 | 5" | 1250x900x1620 | 400 |
| SLD-700 | 700 | 5.5 | 0.75 | 5 | 5" | 1250x900x1620 | 450 |
| SLD-1000 | 1000 | 5.5 | 1.1 | 7 | 6" | 1450x1150x1770 | 500 |
| SLD-1500 | 1500 | 5.5X2 | 1.1 | 7X2 | 6" | 1450x1150x1770 | 530 |
| SLD-2000 | 2000 | 5.5X2 | 1.5 | 7X2 | 8" | 1600x1250x1870 | 570 |
Timetable of material drying
Drying
Temperature(℃) |
Drying Time(hr) |
Material specific
gravity(kg/L) |
Moisture
Content(%) | Drying Capacities (Kg/hr) |
| 80 | 100 | 120 | 150 | 200 | 300 | 400 | 500 | 700 | 1000 | 1500 | 2000 |
| 80 | 2~3 | 0.6 | 0.3－0.02 | 25 | 50 | 75 | 90 | 120 | 180 | 240 | 300 | 400 | 410 | 700 | 1040 |
| 100 | 2 | 0.6 | 0.2－0.02 | 38 | 48 | 75 | 105 | 160 | 260 | 320 | 420 | 530 | 625 | 1010 | 1580 |
| 80 | 3 | 0.65 | 0.5－0.02 | 19 | 25 | 38 | 78 | 115 | 195 | 230 | 297 | 382 | 456 | 762 | 1150 |
| 75 | 4~6 | 0.65 | 1－0.05 | 10 | 12 | 19 | 39 | 57 | 94 | 110 | 152 | 191 | 216 | 378 | 570 |
| 75 | 4~5 | 0.65 | 1－0.05 | 12 | 18 | 23 | 45 | 68 | 112 | 136 | 180 | 230 | 270 | 458 | 685 |
| 75 | 4~5 | 0.65 | 1－0.05 | 12 | 18 | 23 | 45 | 68 | 112 | 136 | 180 | 230 | 270 | 458 | 685 |
| 120 | 2~3 | 0.7 | 0.3－0.01 | 20 | 28 | 39 | 80 | 120 | 198 | 247 | 325 | 410 | 490 | 825 | 1220 |
| 90 | 2~3 | 0.65 | 0.3－0.02 | 20 | 40 | 60 | 75 | 100 | 150 | 200 | 250 | 350 | 440 | 740 | 1130 |
| 130 | 3~4 | 0.7 | 0.2－0.02 | 15 | 23 | 30 | 60 | 90 | 150 | 182 | 243 | 305 | 370 | 620 | 920 |
| 90 | 1 | 0.6 | 0.01－<0.01 | 50 | 65 | 100 | 120 | 300 | 520 | 620 | 840 | 1060 | 1250 | 2100 | 3120 |
| 150 | 3~4 | 0.6 | 0.25－0.02 | 18 | 27 | 41 | 53 | 80 | 135 | 165 | 200 | 250 | 320 | 550 | 820 |
| 160 | 4~6 | 0.85 | 0.2－0.05 | 12 | 18 | 25 | 50 | 70 | 110 | 140 | 170 | 240 | 300 | 500 | 750 |
| 70 | 3~4 | 0.6 | 0.5－0.02 | 19 | 27 | 39 | 53 | 80 | 135 | 162 | 210 | 265 | 310 | 520 | 790 |
| 170 | 5 | 0.85 | 0.1－0.85 | 21 | 30 | 39 | 60 | 90 | 150 | 175 | 250 | 310 | 340 | 580 | 900 |
| 150 | 4 | 0.7 | 0.8－0.02 | 21 | 30 | 40 | 60 | 90 | 150 | 175 | 245 | 300 | 350 | 600 | 900 |
| 110 | 1~2 | 0.5 | 0.1－0.04 | 25 | 55 | 80 | 95 | 130 | 190 | 260 | 330 | 470 | 500 | 880 | 1310 |
| 150 | 3~4 | 0.6 | 0.1－0.02 | 12 | 25 | 34 | 52 | 75 | 130 | 156 | 210 | 260 | 320 | 520 | 780 |
| 120 | 2 | 0.6 | 0.4－0.02 | 27 | 32 | 40 | 52 | 100 | 158 | 255 | 310 | 420 | 525 | 630 | 1050 |
| 90 | 1 | 0.5 | 0.1－0.02 | 38 | 52 | 65 | 87 | 176 | 262 | 438 | 520 | 700 | 872 | 1050 | 1680 |
| 80 | /1 | 0.5 | 0.1－0.02 | 43 | 85 | 130 | 160 | 240 | 360 | 480 | 600 | 840 | 1050 | 1700 | 2500 |
| 70 | 1~2 | 0.5 | 0.1－0.02 | 25 | 55 | 80 | 95 | 130 | 190 | 260 | 350 | 500 | 530 | 870 | 1310 |
| 80 | 1~2 | 0.5 | 0.1－0.05 | 25 | 55 | 80 | 95 | 130 | 190 | 260 | 350 | 500 | 540 | 870 | 1310 |
| 110 | 3 | 0.7 | 0.1－0.02 | 25 | 37 | 50 | 85 | 125 | 202 | 245 | 331 | 413 | 476 | 812 | 1200 |
| 75 | 2~3 | 0.5 | 1－0.02 | 20 | 28 | 32 | 55 | 86 | 145 | 170 | 225 | 290 | 340 | 580 | 872 |
| 75 | 2~3 | 0.5 | 0.8－0.02 | 20 | 26 | 32 | 58 | 85 | 140 | 175 | 228 | 285 | 350 | 570 | 865 |
| 150 | 4 | 0.6 | 0.04－0.02 | 20 | 27 | 38 | 55 | 85 | 140 | 165 | 220 | 270 | 340 | 510 | 800 |
| Note:"Moisture Content":before dehumidification(%)~after dehumidification(%);Mainly for single hopper |

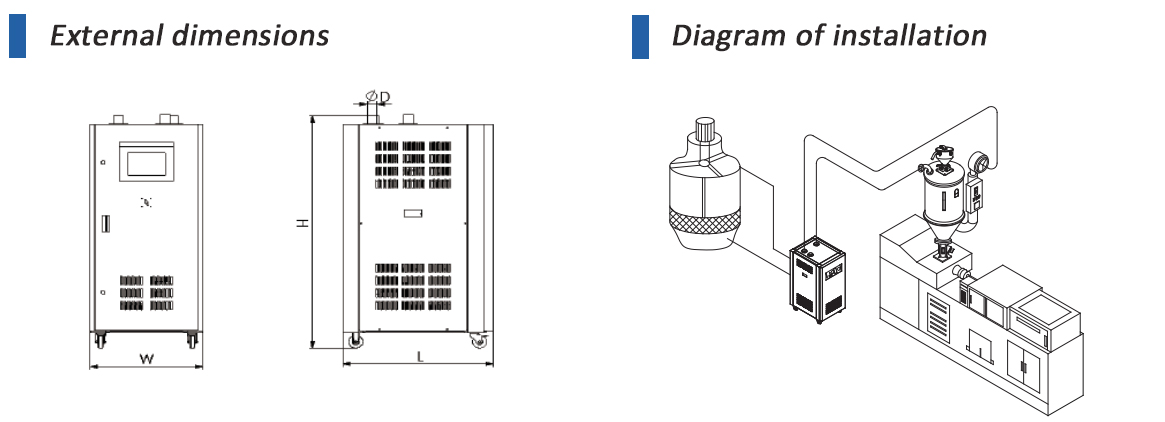

Diagram of Installation
※We reserve the right to change specifications without prior notice.
