•Separation design between the controller and the material hopper,which is convenient and simple to operate.
•Controlled by microcomputer,action precision and alarm attentions.
•Motor overload protection equipped to effectively prolong the service life of the motor.
•With the high voltage blower, the materials can be conveyed in a long distance.
•The hopper is made from the stainless steel to ensure that the material can not be polluted.
•The machine type one-to-several plastic injecting molding machine can be selected for charging as per customer's needs.
•The electric eye hopper or vacuum hopper can be selected according to customer's needs.
Specifications:
Model
Motor (kw)
Conveying Capacity (kg/hr)
Conveying Height (m)
MaterialHopper Volume (L)
Conveying Tube Calibre (mm)
External Dimensions
Weight (kg)
Controller LxWxH(mm)
Material Hopper LxWxH(mm)
Controller
Material Hopper
SAL-700G
1.1
300
4.5
6
Φ38
430x380x600
360x260x430
30
6
SAL-700GE
1.1
300
4.5
6
Φ38
430x380x600
360x260x530
30
6
SAL-800G1
1.1
350
4.5
6
Φ38
430x380x600
360x260x430
45
6
SAL-800G1E
1.1
350
4.5
6
Φ38
430x380x600
360x260x530
45
6
SAL-800G2
1.5
400
5
10
Φ38
430x380x600
400x260x430
50
10
SAL-800G2E
1.5
400
5
10
Φ38
430x380x600
400x260x530
50
10
SAL-3HP
2.2
550
7
12
Φ51
450x380x800
400x260x750
60
12
SAL-4HP
3
600
8
12
Φ51
450x380x800
400x260x750
65
12
SAL-5HP
3.7
700
8
20
Φ51
450x380x800
400x350x750
75
20
SAL-7.5HP
5
800
10
25
Φ51
450x380x800
400x350x1000
90
25
SAL-10HP
7.5
1000
12
25
Φ51
450x380x800
400x350x1000
90
25
Note:Autoloader model from SAL-3HP the above ones can be choose to equip with two or more hoppers to process the multi-stage conveying. (E) Is Electric eye hopper.

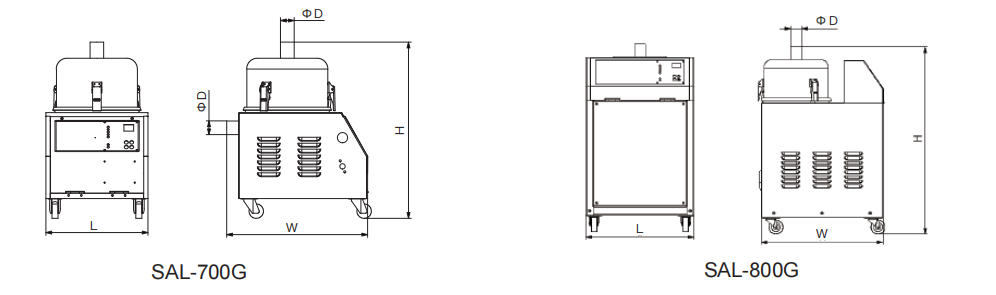

Diagram of installation:
※We reserve the right to change specifications without prior notice.
