•With the func tion of permanent memory and storage.
•Use of brushles s DC-motor, no need for maintenance.
•Use of mic ro-computer control, intelligentize to calculate accurately.
•Can satis fy the requirement of ex ternal s ignal input at the same time.
•The screw is handled with chrome to be durable．
•The modular structure is easy to assemble&disassemble, clean and exchange.
•Single color dose mixer's standard base equips hopper magnets to attract metal to protect the destorying of screw in injection machines .
•The stirrer is optinal for single color does mixer, and should matched with stirrer controller to mix the material even.
•The double color dose mixer equips base with stirrer, can satisfy the request of mixing double materials .
•The main material hopper is standard equipment for double color dose mixer, optional for single color dose mixer.
Specifications:
| Model | SCM-12S(M) | SCM-14S(M) | SCM-16S(M) |
| Out put (Kg/hr) | 0.3~3 | 0.5~5 | 0.8~10 |
| Feeding motor power (W) | 150 | 150 | 150 |
| Feeding motor rotary speed (rpm) | 1 - 1000 | 1 - 1000 | 1 - 1000 |
| Mixing motor power (W) | 90 | 90 | 90 |
| Mixing motor rotary speed (rpm) | 1 - 3000 | 1 - 3000 | 1 - 3000 |
| Reduction ratio | 1:30 | 1:30 | 1:30 |
| Materials barrel (L) | 10 | 10 | 10 |
| Screw diameter (mm) | 12 | 14 | 16 |
| L(mm) | 535 | 535 | 535 |
| L1(mm) | 250 | 250 | 250 |
| L2(mm) | 205 | 205 | 205 |
| W(mm) | 240 | 240 | 240 |
| W1(mm) | 240 | 240 | 240 |
| W2 (with M) (mm) | 200 | 200 | 200 |
| H(mm) | 560 | 560 | 560 |
| H1(mm) | 300 | 300 | 300 |
| H2(mm) | 162 | 162 | 162 |
| Weight (kg) | 28 | 28 | 28 |
※We reserve the right to change specifications without prior notice.

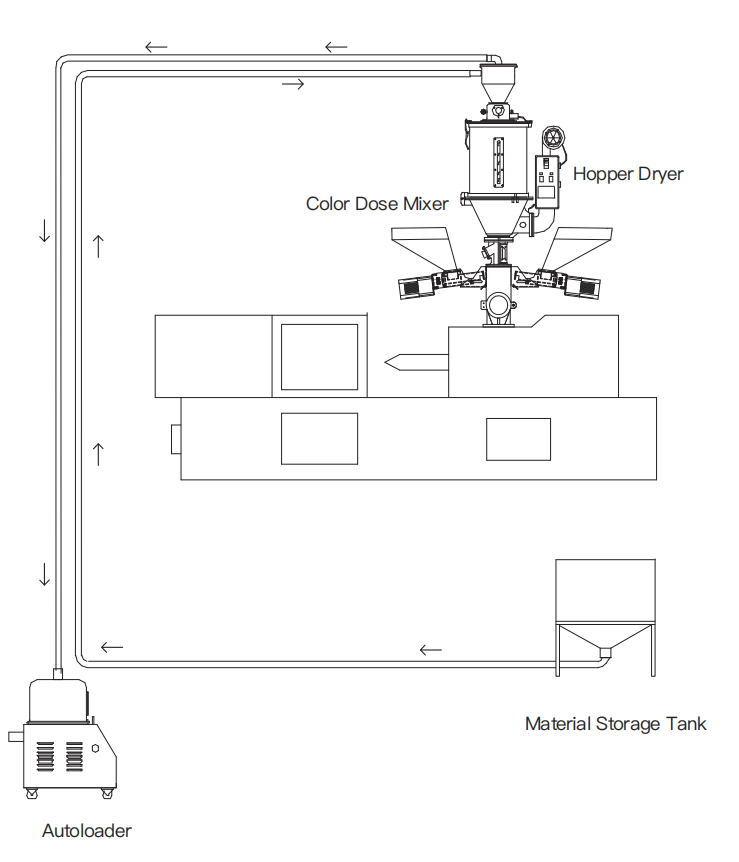

Diagram of installation:

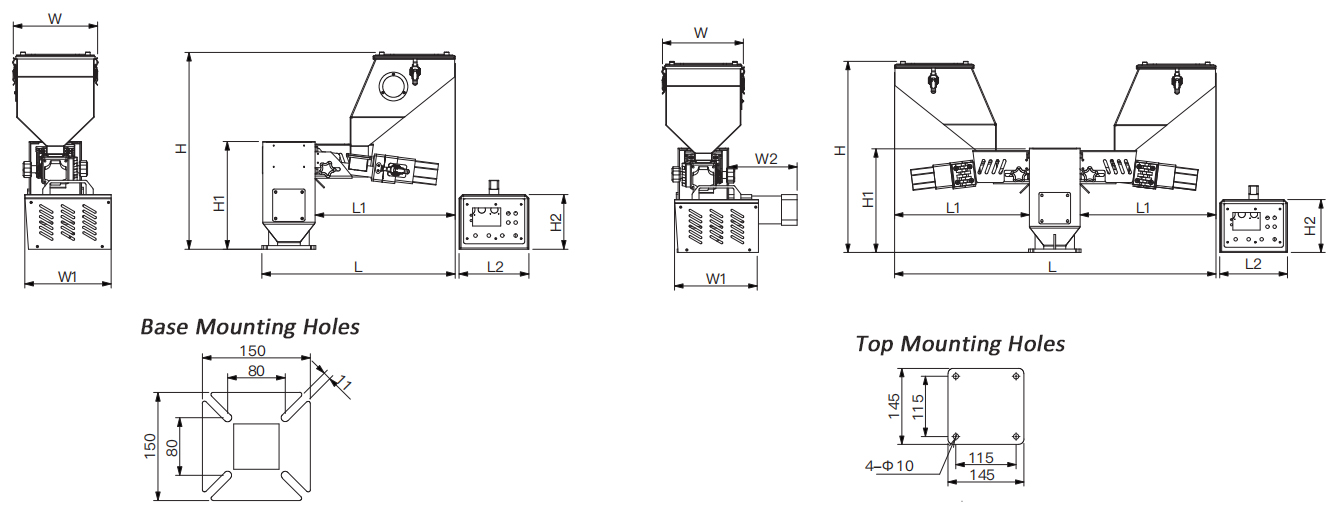

External dimensions:
